Rigid seal (configurable)
Please note that further information, prices and the option of purchasing is restricted for signed-in users.
| Material number (ID) | p_rs |
|---|---|
| Note | For more product details please select a variant! |
| Material | Light metal |
| Seal System | Rigid seal |
| Protection Class | IP44 |
| Weight (in kg) | 0.00 |
Rigid seals from specialist for drive technology RENK

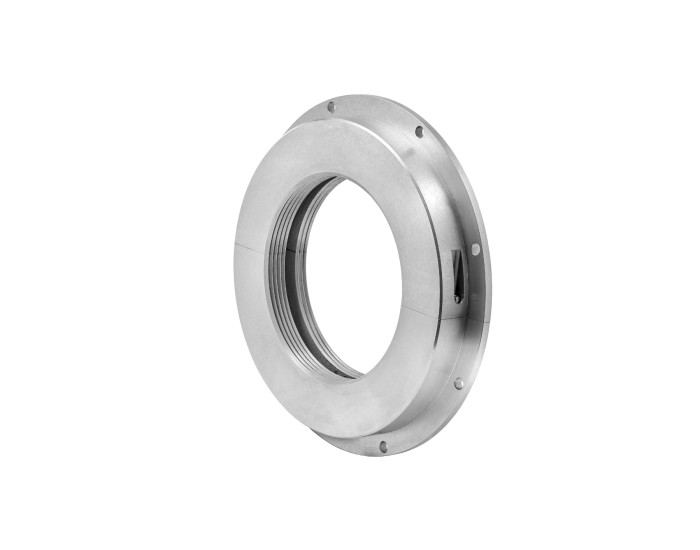

The rigid seal type 20 consists of a chamber seal made up of two parts (upper and lower part) that are screwed together. The material is light metal. It offers IP44 class protection. The chamber seal is a non-contact seal consisting of two labyrinths. The inside retains the lubricant, while the outside prevents the ingress of water and dust.
As rigid seals are subject to a running-in process at the beginning of their use, during which they adapt individually to the shaft, the tolerances mentioned should only be applied to new, unused chamber seals. The running-in process is desirable and ensures that the seals run without contact. This does not restrict the sealing function.
