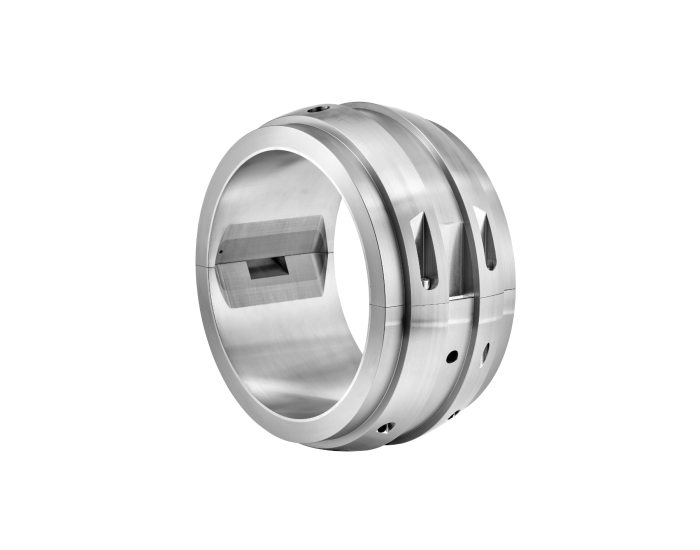

SC-bearing shell (configurable)
Please note that further information, prices and the option of purchasing is restricted for signed-in users.
| Material number (ID) | p_shell-sc |
|---|---|
| Note | For more product details please select a variant! |
| Weight (in kg) | 1.00 |
| Included | Upper and lower half of shell (assembled) |
Bearing shells from specialist for drive technology RENK
The shells are spherically seated in the housing. This means simple assembly as well as suitability for high static and also dynamic radial loads. For oil ring lubricated bearings a favourable oil flow (oil circulation) is guaranteed by the central arrangement of the oil ring. The wide spherical seating means too, that there is good heat transfer between the shell and the housing.
The shell consists of a steel body which is lined with RENK metal therm 89 (a tin based bearing metal). The shells optimised to carry radial lodas. Shells with a B or K thrust surface can also take any small transient axial loads.
The perfect metallic bond between steel and bearing metal is guaranteed by the specified ultrasonic tests which are carried out in the course of manufacture.
Product code for bearing shell type SCZCB/K/Q
| Type |
SC | → smooth pedestal slide bearing specially designed for radial loads |
| Heat dissipation | Z | → oil circulating system with external oil cooling |
| Type of bearing shell and lubrication | C | → plain cylindrical bore, without oil ring |
| Thrust surface | B/K/Q | → plain sliding surfaces (locating bearing) / taper land faces for both senses of rotation (locating bearing) / without thrust parts (non - locating bearing) |
Type SC Slide Bearings from RENK
RENK SC-Type bearings are slide bearings of the most up-to-date design which can be assembled together, to suit requirements in a number of alternative ways by using pre-fabricated units.
They were developed primarily as bearings for electric machines and to carry radial loads.
The SC series can be used together with the well-known RENK E type, e.g. the shaft height and the bore configuration of the pedestal have been adapted from the E version.
A particular advantage of installing them in production plants (e.g. refineries, power stations, iron and steelworks) is to reduce the number of parts which have to be carried in stock as it is often possible to equip driving and driven machines with the same slide bearings. The different design types are available from stock in the range of diameters from 140 to 1400 mm.
Further designs or dimensions on request!
